1064nm

Filter λ=1064nm, T>90.0%@1064nm, FWHM<4nm,>OD4@200-1200nm

658nm

Filter λ=658nm, T>94.0%@658nm, FWHM<8nm

450&650nm

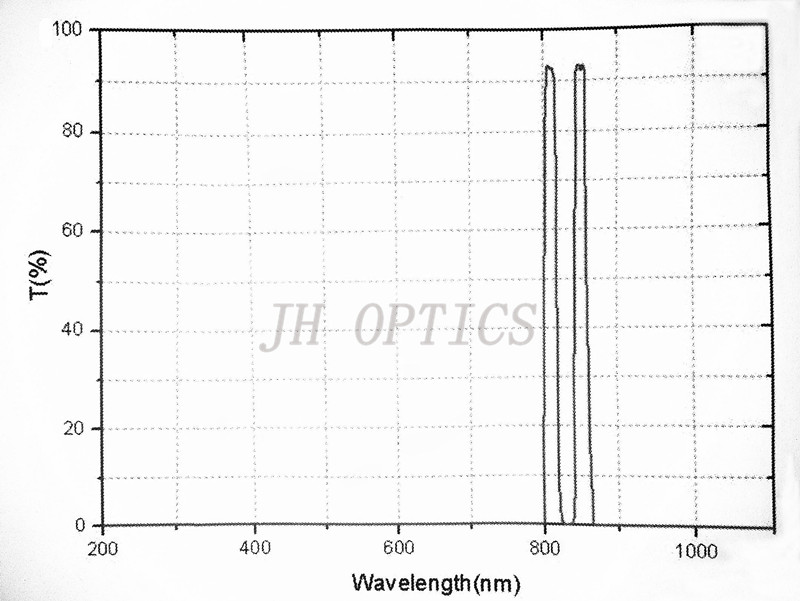

Fig.13 Filter @808nm and 850nm(a); Zoom In(b) Quality: T>90.0%@808nm and 850nm; Stop band 200nm-778nm@880-1100nm, T<0.06%; Stop band 826nmnm-832nm, T<0.3%; Wavelength wide at 90% of transmission peak<14nm; Wavelength wide at 50% of transmission peak is between 18-22nm; Wavelength wide at 10% of transmission peak<30nm;

filter808nm&850nm

Fig.13 Filter @808nm and 850nm(a); Zoom In(b) Quality: T>90.0%@808nm and 850nm; Stop band 200nm-778nm@880-1100nm, T<0.06%; Stop band 826nmnm-832nm, T<0.3%; Wavelength wide at 90% of transmission peak<14nm; Wavelength wide at 50% of transmission peak is between 18-22nm; Wavelength wide at 10% of transmission peak<30nm;

filter4notch

Fig.14 Filter 4 notch Quality: Pass band 458nm-477nm, T>93.0%; Pass band 503nm-543nm@574nm-622nm@660nm-760nm, T>95.0%; Pass band 489nm-493nm$638nm-644nm, OD>3; Stop band 556nm-560nm, OD>4; Stop band 442nm-452nm, OD>5;
