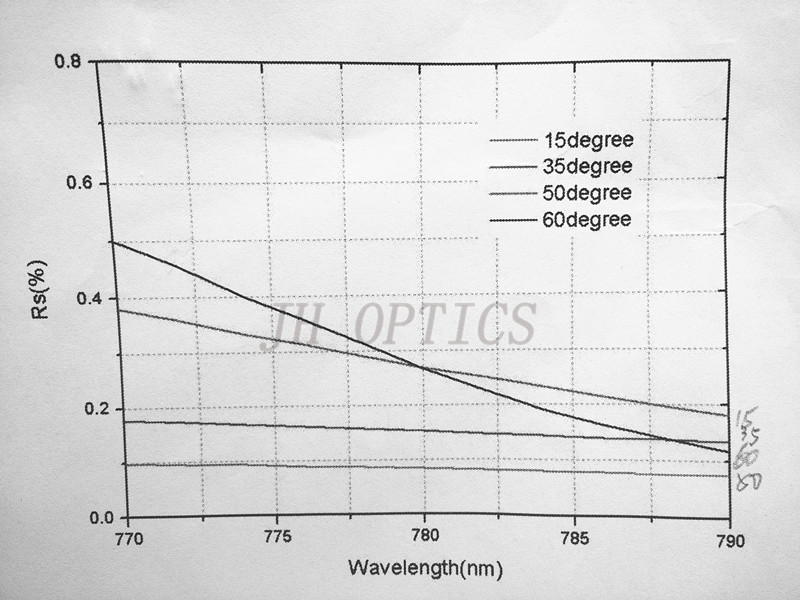

AR@770-790nm for S-Pol Muti-angle

AR@770-790nm for S-Pol Muti-angle Rs<0.5% Quality: Reflection<0.7% at AOI=15° and Reflection<1% at AOI=35°&50°; The sum of reflection at 35°&50°between 0.0% and 1.0%; All for S polarization from 770nm to 790nm.

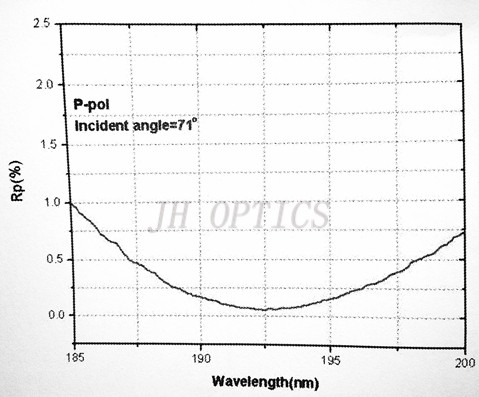

AR 193nm AOI71°and74°

AR Rp<0.3%, Tp>97.8%@193nm for P-pol AOI equal 70°(a) AR Rp<1.6%, Tp>97.0%@193nm for P-pol AOI equal 74°(b)

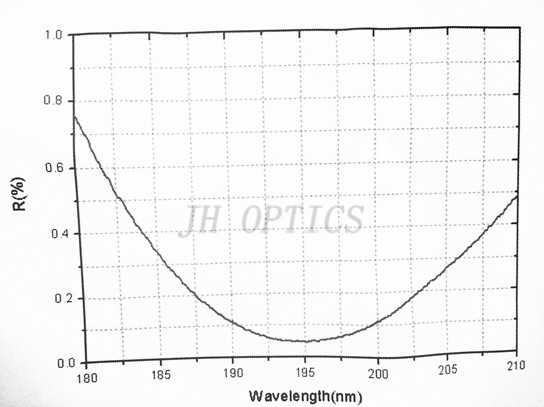

AR193nm

HR 45°@1064nm R>99.8%
